2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

Brand Name : RATTM MOTOR

Model Number : GDZ-80x73-2.2

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD210-268/Piece

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100Pieces/day

Delivery Time : 3-5 work days

Packaging Details : Carton case, 45*25*35

Product Category : Spindle Motor Kit

Material : Stainless Steel

Current : 6A

Operating Speed : 10-24000rpm

Runout off : Less than 0.01mm

Bearings : 4PC Ceramic bearing

Collet,Voltage : ER20, 220V

Inverter : 2.2KW Huanyang Inverter

Contact Now

2.2kw ER20 CNC Spindle Motor Kit Air Cooled 0.01mm Accuracy With Huanyang Inverter For CNC Machine

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

Package include:

1 x 2.2Kw Square Air-cooled spindle motor (ER20 220V,24000rpm,4 bearing,400Hz)

1 x 2.2KW Huanyang Inverter
2.2KW ER20 Air-cooled spindle motor
2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

Specification:

  • Material: Stainless Steel
  • Power: 2.2KW
  • Voltage: 220V/AC
  • Current: 6A
  • Frequency: 400Hz
  • Speed: 24000rpm

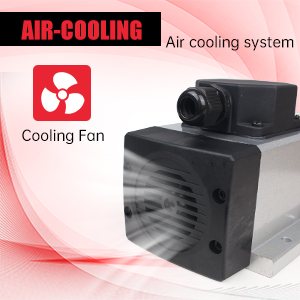

  • Cooling: Air-Cooled
  • Runout off: Less than 0.01mm
  • Precision Tapered Bore: Less than 0.005mm
  • Bearing Lubrication: Grease
  • Collet Size: ER20
  • Bearings: 4pcs bearing,P4 class

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine
2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

Wirings:

  • spindle’s terminal"U1"connect inverter’s"U";
  • spindle’s terminal"V1"connect inverter’s"V";
  • spindle’s terminal "W1" connect inverter’s "W";
  • the inverter’s"R","S", "T" any "2" terminal connection "220VAC"

Main application:

Engraved on wood, Aluminum, Glass, soft metal,PVC industry,also suitable for non-metallic engraving,mainly used for cnc router engraving milling cutting machine

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

2.2KW VFD

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

Product Feature:

1) Input Voltage: 110V(+/-15%) ,

2) Output Voltage: 100V/AC-120V/AC

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 phase

6) Output Phase: 3 phase

7) Output Current: 20A

8) Model: HY02D211B

9) Horsepower: 3HP

Advantages

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)With extremely strong anti-jamming capability;

4)Low output ratting torque0.5HZ-150%, low speed running ability;

5)Carrier adjustable by 16KHZ, completely soundless working environment;

6)Broad voltage working area, normal running in 100V-120V;

Inverter parameter setting

7)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

8)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

9)With perfect error protection and short circuit starting protection capability;

10)A potentiometer can be used to adjust to the rotation speed you want.(Speed range: 0-24000rpm);

11)7)supports external potentiometer control,supports mcah3 function and RS-485 communication.
2.2kw ER20 CNC Spindle Motor Kit Air Cooled For CNC Machine

Wiring:

Spindle's pin 1=U

Spindle's pin 2=V

Spindle's pin 3=W

Spindle's pin 4=Ground

Pls connect the 110V AC power supply input wires to the R & T terminals.

Definition of the VFD buttons

  • UP: Progressively increase data or function codes.
  • DOWN: Progressively decrease data or function codes.
  • SET: Enter menus step-by-step, save setting parameters.
  • PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
  • FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
  • SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
  • Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key
